Composite Pent Concrete Shed 785 - PVCu Window, Fascias and Door

Composite Pent Concrete Shed 785 - PVCu Window, Fascias and Door

Summary:

These pent roof concrete sheds and workshops range in size from approximately 6'x12' to 12'x20' and include free installation. Standard features include PVCu fascias, 4' wide white double glazed PVCu double doors and wood effect composite cladding on a choice of two, three or all four walls. The sensational wood effect finish is attractive, durable and maintenance free. The cost effective composite cladding system reproduces the appearance of a traditional wooden shed and it will look good for years to come. The composite cladding panels neatly interlock, giving a continuous wood effect finish with no piers and barely visible joins with neat corners. Any walls not composite clad feature durable Canterbury Spar chippings. The roof sheets are strong galvanized steel with an anti-condensation layer. The steel roof structure features galvanized welded steel trusses. An internal mortar fillet is fitted to prevent water ingress under the walls. PVCu guttering in a choice of colours and two full height 2' wide double glazed PVCu windows are also included. Insulated roof sheets are available as an optional extra.

Prices fixed until Wednesday 18th December.

The prices INCLUDE DELIVERY and FREE INSTALLATION. Local baselaying services are also available in many postcodes.

SizeComposite to Front & 1 SideComposite to Front & 2 SidesComposite to Front, Back & 1 SideComposite to All 4 SidesInsulated roof sheets
6'1" x 12'3"
£6,274
£6,760
£7,246
£7,732
+£583
6'1" x 14'3"
£6,507
£6,993
£7,641
£8,126
+£680
6'1" x 16'3"
£6,892
£7,377
£8,187
£8,673
+£777
6'1" x 18'3"
£7,221
£7,706
£8,678
£9,164
+£874
6'1" x 20'3"
£7,550
£8,035
£9,169
£9,654
+£972
7'1" x 12'3"
£6,426
£6,993
£7,398
£7,964
+£680
7'1" x 14'3"
£6,654
£7,221
£7,787
£8,354
+£793
7'1" x 16'3"
£7,114
£7,681
£8,410
£8,976
+£907
7'1" x 18'3"
£7,448
£8,015
£8,906
£9,472
+£1,020
7'1" x 20'3"
£7,782
£8,349
£9,401
£9,968
+£1,133
8'1" x 12'3"
£6,578
£7,226
£7,550
£8,197
+£777
8'1" x 14'3"
£6,801
£7,448
£7,934
£8,582
+£907
8'1" x 16'3"
£7,337
£7,985
£8,632
£9,280
+£1,036
8'1" x 18'3"
£7,676
£8,324
£9,133
£9,781
+£1,166
SizeComposite to Front & 1 SideComposite to Front & 2 SidesComposite to Front, Back & 1 SideComposite to All 4 SidesInsulated roof sheets
8'1" x 20'3"
£8,015
£8,663
£9,634
£10,282
+£1,295
10'1" x 12'3"
£7,539
£8,349
£8,511
£9,321
+£972
10'1" x 14'3"
£7,934
£8,744
£9,068
£9,877
+£1,133
10'1" x 16'3"
£8,400
£9,209
£9,695
£10,505
+£1,295
10'1" x 18'3"
£8,749
£9,558
£10,206
£11,016
+£1,457
10'1" x 20'3"
£9,098
£9,907
£10,717
£11,527
+£1,619
12'1" x 12'3"
£8,177
£9,148
£9,148
£10,120
+£1,166
12'1" x 14'3"
£8,723
£9,695
£9,857
£10,828
+£1,360
12'1" x 16'3"
£9,209
£10,181
£10,505
£11,476
+£1,554
12'1" x 18'3"
£9,568
£10,540
£11,026
£11,997
+£1,749
12'1" x 20'3"
£9,928
£10,899
£11,547
£12,518
+£1,943
SizeComposite to Front & 1 SideComposite to Front & 2 SidesComposite to Front, Back & 1 SideComposite to All 4 SidesInsulated roof sheets

Specifications

  • Free same day installation
  • Free mortar fillet to the internal walls
  • 10 year structural guarantee
  • External wood effect composite finish with a choice of colours
  • Overlapping cladding panels
  • Complimentary coloured composite corner caps
  • External pebbledash finish with Canterbury Spar chippings for all walls not featuring composite cladding
  • Large full height panels with fewer joins and neater internal lines
  • Attractive smooth vibrated internal finish
  • Strong interlocking rebated concrete panels
  • Galvanized bolts
  • Pent roof sloping from front to back with a shallow pitch
  • Welded galvanized steel roof trusses
  • Galvanized steel roof sheets with no drip anti-condensation layer inside
  • Two free non opening full height double glazed PVCu windows 2' wide x 6' high (610mm x 1800mm)
  • Square line PVCu guttering with downpipes
  • Low maintenance PVCu gables and fascias
  • White PVCu double hinged doors 4'0" wide with double glazing
  • Door clear opening size 3'9" x 6'0" (1140mm x 1830mm)
  • Door head clearance 6'6" (1985mm)
  • Eaves height 6'6" (1980mm)
  • External height at the front varies according to length from approximately 7'0" (2135mm) to 7'6" (2285mm)

FREE SAME DAY INSTALLATION - THE BENEFITS: Our free in house installation service is not just convenient, it is also your assurance of a better quality garden shed. This is because any building which includes free installation is invariably better made using quality components. Over time regular feedback from fitters ensures that design faults and weaknesses have been rectified. Same day installation is convenient for you and cost effective because it saves travelling costs. The fitters will deliver your garden shed and then install it, all at the same time. Others send sub-contract fitters separately, often from far away and often a week or two after the delivery. Waiting for the fitter can be very frustrating. Sub-contract fitting is also much more expensive because of the travelling costs. The fitting service does not include base preparation. A flat and level base is required, which should be made using concrete. In many areas we offer a base laying service as an option.

CONCRETE SHEDS AND WORKSHOPS - THE BENEFITS: Many of our best timber sheds and log cabins are solid, well made and likely to last a long time with very little maintenance. However, nothing can match the solidity and durability of a concrete sectional building. If you choose PVCu windows and gables your concrete shed or workshop will be almost completely maintenance free. Sectional concrete sheds and workshops are especially popular as a more secure home for valuable items such as expensive tools or motorbikes.

WOOD-EFFECT COMPOSITE CLADDING: The heavy duty concrete panels are approximately 65mm thick and steel reinforced. The panels are finished outside with a sensational wood effect finish which is attractive, durable and maintenance free. The cladding is attached to the concrete walls using a concealed fixing system. The durable and cost effective composite cladding system reproduces the appearance of a traditional wooden shed and it will look good for years to come. The composite cladding panels neatly interlock, giving a continuous wood effect finish with no piers and barely visible joins with neat corners. The finish is very tough and impervious to water. You can choose to clad two, three or all four sides of your building. Any walls not composite clad feature durable Canterbury Spar chippings. The inside features full height panels with a smooth vibrated finish to ensure a neat appearance. The smooth internal finish is attractive in itself but it is also easy to paint which provides a stunning internal finish. The cladding specialists will arrive on site to apply the wood effect cladding about a week after installation but you can use your building prior to their arrival. The cladders will need to be able to get all the way around the building to fit the cladding panels. The cladding is available in a choice of colours.

ANTI-CONDENSATION ROOF SHEETS: The roof is clad with heavy duty galvanized steel roof sheets. The underside is finished with a no drip anti-condensation layer. An absorbent fibrous mat is applied to the underside of the steel roof sheets which absorbs condensation. The fibrous mat absorbs water which then evaporates when the temperature rises. It is a permanent felt based moisture barrier which is applied to the metal sheet during manufacture. The anti-condensation coating is a light grey colour with an attractive fabric finish.

WELDED STEEL ROOF TRUSSES: The all steel roof structure features one piece welded steel trusses which span from side to side. The trusses are bolted to the concrete panels and spaced up to 4' apart. The trusses are set at different heights with the highest at the front and the lowest at the rear, which provides an even slope from front to back. All steel is galvanized.

INTERNAL MORTAR FILLET: The price includes laying a mortar fillet on the inside of your building between the concrete panels and the base to prevent water ingress under the walls. This important finishing touch is not always included with other concrete buildings.

INTERNAL SIZES AND BASE SIZES: Concrete sheds and workshops require a substantial concrete base which should be slightly larger than the shed. The ideal size is 3" or 75mm bigger than the shed on all sides. To calculate the correct base size any concrete shed or workshop just add 6" or 150mm to the external width and 6" or 150mm to the external length. Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed near the prices at the top of the page. The internal sizes are approximately 5" or 125mm smaller than the external sizes. All sizes are approximate.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.

Options

  • Additional larger sizes in approximately 2' increments (prices on request)
  • Choice of composite cladding to the front wall and either one side wall, two side walls, one side and the rear wall or fully clad all round

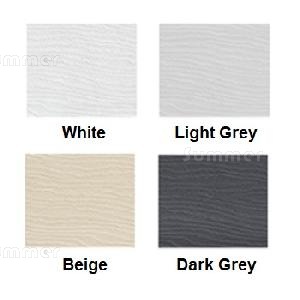

  • Choice of wood-effect composite in a selection of colours
  • Choice of window and door positions
  • Additional PVCu windows
  • Available with no windows for improved security at no additional cost
  • Insulated steel roof sheets with plastisol coating
  • Choice of black, brown or white PVCu guttering with a downpipe fitted to the rear wall
  • Internal partitions
  • Portable indoor gas heaters - no need for an electricity supply or trailing leads

INTERNAL PARTITIONS: If required partitions are available so you can create a separate area within the building. This area could be accessed by fitting a personnel door in an external wall or in the partition itself. If your order includes internal partitions we will contact you to discuss your requirements.

POSITION OF WINDOWS AND DOORS: If you like you can order your concrete shed without specifying the door and window positions - if so, we will contact you to discuss your requirements. If you prefer you can select one of our standard designs, which are displayed under the Design Options heading.

Delivery

  • Delivery is normally between 3 and 4 weeks after order.
  • If your building includes an up & over door which is wider than 8ft, please allow between 6 and 8 weeks after order.
  • Our prices for concrete buildings include all delivery charges
  • Our concrete buildings are delivered and installed on the same day.
  • Your building is delivered by specialist installers in dedicated vehicles. They can unload your building quickly and without assistance.
  • The delivery vehicle is a large lorry, typically around 33' or 10m long and 9' or 2.7m wide. It is unloaded from the side, normally onto the verge at the front of the property. A suitable parking area is required within 50 yards (46 metres) of the base for your building.
  • The heavy concrete panels are carried from the lorry on trolleys. This requires a clear route over a solid and hard surface between the lorry parking area and the base for your building. Concrete, tarmac, slabs and brickweave are normally suitable surfaces for the trolleys. Soil, shingle, steep slopes and flights of stairs may cause a problem.
  • The minimum clear width required for the trolleys is 2'2" or 660mm wide.
  • With advance warning we can normally overcome most access restrictions, often at no extra cost. For example, with advance warning the fitters can bring timber ramps to overcome a small step or boards to spread across a small area of gravel or lawn. Please contact us if you have any concerns regarding the access at your site.

Ordering/Payment

  • All garden shed prices include VAT.
  • Pay only 30% deposit when you order this garden shed by phone or online.

ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.

METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Debit and MasterCard Debit. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.

SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.

Installation

  • All prices include FREE INSTALLATION by specialist trained staff.
  • Your concrete building will be delivered and installed on the same day by prior appointment with you.
