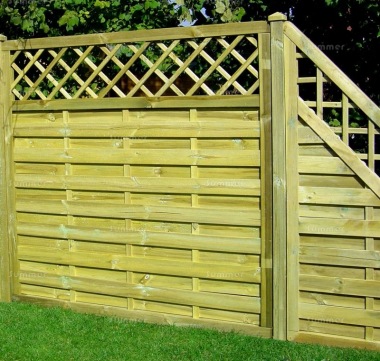

Fence Panel 435 - Stepped Height, All Planed, 9mm Boards, 3x2 Frame
Summary:
This stepped height decorative fence is 6' high (1.8m) at one end and 3' high (0.9m) at the other end, with an angled link panel between the two. The panels are 6'x6' and 6'x3' panels (1.8x1.8m and 1.8x1.5m) with a diamond trellis top. Other features include a smooth planed ex 3"x2" outer frame with morticed and tenoned corners for extra strength. The boards are around twice as thick as standard fence panels and smooth planed with an attractive reeded finish. All timber is pressure treated, a lifetime preservative treatment which ensures greater durability. The timber is smooth planed which lasts longer than standard sawn finish timber. The minimum order is five panels and you can add as many extra panels as you need. You can also add a wide range of accessories including posts, post caps, post supports and panel fixing clips. Gates and gate ironmongery are also available.
Prices fixed until Wednesday 18th December.
The prices INCLUDE DELIVERY. The minimum order is 5 panels. You can add as many extra panels as you like.
Option | Price |
---|---|
5 panels - 2 x 6x6, 2 x 6x3, 1 x link | £569 |
Specifications
- All timber used in the construction of this fencing panel originates from sustainable forests
- All timber is pressure treated (lifetime preservative treatment)
- Scandinavian redwood or whitewood
- Strong ex 3"x2" outer frame (finished size 70x45mm after machining)
- Smooth planed outer frame with rounded edges
- Morticed and tenoned outer frame corners for greater strength
- Ex 4" wide boards (finished size 9x95mm after machining)
- Smooth planed boards with an attractive reeded finish
- Smooth planed intermediate framing (finished size 30x12mm after machining)
- Intermediate vertical framing at 18" centres (450mm)
- Diamond trellis top feature with approximately 80x80mm diamond size
- During manufacturing each end of the boards are slotted into a groove in the outer frame, which ensures greater panel strength
- Stainless steel fixings
- Smooth planed timber throughout, which lasts longer than standard sawn timber
- 1 angled link panel included, 3' wide (900mm), matches both panels and bridges the step in height
SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.
LUXURY DESIGNER FENCING PANELS - THE BENEFITS: These high specification fence panels are designed not only to look good but also to last longer than standard fencing panels. Quality features include thicker framing, thicker boards, stronger corner joints, more durable fixings and smooth planed timber. Standard fence panels feature thin timber, typically 38x16mm framing battens and 4.5mm thick slats (3/16"). That is why the timber sizes are rarely quoted in the specifications. In addition, the construction itself is crude with stapled corners, thin zinc plated staples and rough sawn timber.
These quality fence panels feature a substantial ex 3"x2" (70x45mm) outer frame, which contains over 5 times more timber than standard fencing battens. In addition, the frame features strong morticed and tenoned corners for extra strength. Most fencing panels do not include a properly jointed outer frame at all, but it is an important way to hold the panels together in extreme conditions. The boards are 9mm thick, which is around double the thickness of standard fencing slats. The boards are firmly retained by a groove in the outer frame. The fixings are all stainess steel. In addition, the boards and framing are planed timber which lasts longer. Sawn timber has a rough finish which absorbs much more water and takes longer to dry. Planed timber is smooth so water drains quicker and the wood dries quicker.
PRESSURE TREATED TIMBER: Pressure treatment is a lifetime preservative treatment. The preservative is forced deep into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently bonded to the cell structure of the wood at a molecular level. Tanalith E is a widely used water based version so pressure treated wood is often described as tanalised. Pressure treated wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.
Options
- Add any number of individual extra panels, as few or as many as you need, subject to a minimum order of 5 panels
- Concrete fence posts in a choice of lengths
- Pressure treated fence posts, smooth planed with rounded edges, in a choice of lengths
- A choice of fence post dimensions, either ex 3"x3" (finished size 70x70mm) or ex 4"x4" (finished size 90x90mm)
- A choice of post supports to suit 3"x3" or 4"x4" posts, including drive-in spikes, bolt down brackets and concrete-in stirrups
- A choice of post caps to suit 3"x3" or 4"x4" posts, either wooden or stainless steel
- Panel fixing clips
- A choice of single and double gates with a wide choice of widths, heights and styles
- Gate ironmongery packs, including hinges, bolts and latches
- Timber sleepers, ex 4"x8", approximately 8' long, in a choice of colours
- A selection of microporous wood preservatives in a wide choice of colours
SLOTTED CONCRETE FENCE POSTS: Slotted concrete posts include a full length slot or groove on each side which hold the fence panels in place without the need for any fixings. The concrete is reinforced along its length with concealed steel reinforcing bars set within the concrete which provide great strength.
Concrete fence posts are available in a range of lengths to suit your needs. The posts are set in the ground, normally in concrete. We recommend posts approximately 2' or 24" longer (600mm) than the fence height e.g. a 6' high panel requires 8' long posts.
WOODEN FENCE POSTS: Pressure treated timber fence posts are available in a range of lengths to suit your needs. The wood is smooth planed throughout with rounded edges, partly to ensure extra durability but also to provide a more refined appearance than standard sawn posts. The posts can be set in the ground, normally in concrete, or you can use galvanized steel post supports. If you plan to set your posts in the ground we recommend posts at least 2' or 24" longer (600mm) than the fence height e.g. 6' high panel requires 8' long posts. However, for best results with 6' high panels we recommend longer 9' posts, which are 3' or 36" longer (900mm) than the fence height. Longer posts are also recommended at sites with a significant slope. If you plan to use steel post supports we recommend posts at least 1' or 12" longer (300mm) than the fence height e.g. 6' high panel requires 7' long posts.
The most popular post size for fencing is 3"x3" but we also offer 4"x4". That extra inch does not sound much but it is much stronger. We recommend 4"x4" posts at any exposed site, especially for 5' or 6' high panels. It is also worth considering 4"x4" if you are paying for professional installation. The cost of installing fence panels with 3"x3" or 4"x4" posts is usually exactly the same but the fence with thicker posts should last longer.
A CHOICE OF POST CAPS: Post caps are not only an attractive design feature but also an important way to protect your investment. The post caps cover and protect the exposed end of each post to keep the water out, which ensures greater durability. They are also a great way to enhance the appearance of your fence. We offer two distinct styles. You can choose either matching timber posts caps for a more traditional appearance or galvanized steel post caps for a more contemporary look. Our post caps all feature a decorative round ball which also discharges rainwater. The wooden post caps are larger in area than the posts to ensure an overhang. The ideal fixings are small and narrow lost head nails fixed from above at an angle. The galvanized steel post caps surround the top of the posts and are fixed from the side.
PANEL FIXING CLIPS: Our zinc plated steel panel fixing brackets are designed to fix our fencing panels securely, neatly and discreetly into timber posts. The L-shaped design means that if all clips are fitted facing the same way, they are only visible from one side. We recommend fixing 5' and 6' high panels (1.5m and 1.8m) using 6 clips per panel, with 3 clips each side. We recommend fixing 3' and 4' high panels (0.9m and 1.2m) using 4 clips per panel, with 2 clips each side.
GALVANIZED STEEL POST SUPPORTS: We offer a choice of different steel post supports to simplify and improve the installation process. Setting posts in the ground in the traditional way requires the excavation of deep holes. Care is also required when backfilling the holes. You can use wet concrete, dry lean mix concrete or compacted rubble. Concrete should be finished below ground level and chamferred away from the post at the top. At the bottom the post must penetrate below the concrete for drainage purposes. A degree of skill and effort is required and there is always the worry that posts set in the ground are more likely to rot over time. Posts set in our steel post supports should be set above the ground with little or no direct contact with the ground. We offer 3 types of steel fence post supports:
DRIVE-IN SPIKES: Short offcuts of wood are placed in the sockets and the spikes are driven into the ground with a sledgehammer. The offcuts should be about 8" long (200mm). You can use offcuts from the fence posts or any similar wood offcuts. This method can be very quick and easy, especially in softer soils. However, it can be harder in heavy clay or stony ground. It is not always as precise as other methods because a large stone below ground may deflect the spike slightly out of line. Professional fence erectors do not often use drive-in spikes which were developed for the DIY market. This is our most popular type of post support.
BOLT DOWN POST SUPPORTS: Bolt down post supports can save you a lot of work if your fencing passes over an area of existing concrete. Instead of breaking up the concrete or cutting a hole through it you can simply bolt one or two of these post supports directly into the concrete. 2 fixings are required per post support, on opposite sides, so you just need to drill a couple of holes. Although much easier to use these post supports are not as strong as the other options we offer, so we do not recommend fixing long runs of fencing this way. There are 2 slightly different types offered. The box shape socket surrounds the post to provide the strongest fix if this is your preference. The U-shape socket can be fitted with the flanges barely visible if this is you prefer.
CONCRETE-IN STIRRUPS: These concrete in stirrups or H-brackets are the best method we know of for installing fence posts, combining the best of the traditional way with the best of modern engineering. Professional fence erectors should be happy with this method although it may take longer. The bottom half of the stirrups are set in concrete which requires holes to be excavated, but the holes are not as deep as traditional post holes. The combination of concrete and thick steel is immensely strong. The top of the stirrup should be above the concrete. For greater precision the posts can be concreted as the posts are fitted. Alternatively, the stirrups can be concreted in advance, which is quicker but precise positioning is required. The uppermost flanges can be fitted in 2 different ways. At the most exposed sites the flanges should be front and back for maximum strength. At less exposed sites the flanges will be barely visible if they are fitted from side to side.
GATES: Our superb selection of great value single and double gates are available in a range of heights and widths to suit most requirements. Styles include palisade style gates with vertical pales, joinery gates with tongued and grooved boarding and gates to match your choice of fencing. Our deluxe gates are surprisingly affordable and feature joinery frames with comb jointed or morticed and tenoned joints. Ironmongery packs are available as an option.
TIMBER SLEEPERS: These chunky railway sleepers can be used in a number of different landscaping projects in your garden, such as dividing walls, edging, steps, as bearers or foundation beams under garden buildings, and so on. The overall size is approximately 100x200mm and 2400mm long (approximately 8ft), though they can be cut to suit on site if required. They have been pressure treated for added longevity. Pressure treatment is a lifetime preservative treatment.
MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.
Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.
Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.
WATERPROOF COLOUR SEAL - DELIVERED TO YOUR DOOR: This advanced water-based microprous timber treatment uses the latest high-tech nanotechnology to create a long-lasting waterproof wood coating that is environmentally friendly. It is suitable for use on all softwood and hardwood products and is especially recommended for use on pressure treated timber, including sheds, summerhouses, gazebos, fencing and garden furniture. This timber treatment will colour, protect and enhance your exterior wood. It contains a mould inhibitor to protect the coating and can be used on all outside and inside timber. It gives a traditional matt wood stain finish in a range of natural colours. It can easily be applied by sprayer, brush or roller. It is recommended that the second coat is applied as soon as the first coat is touch dry. We advise for ultimate performance the timber has a wood preservative pre-treatment. For the first treatment, two coats are recommended and will give a traditional wood stain finish that is long lasting. A further coat is recommended every 2-5 years. One litre covers approximately 10-12 square metres. Coverage varies according to the smoothness of the surface and the porosity of the timber. On average five litres covers a 12x8 shed with two coats and ten litres covers a 10x20 with three coats. It is recommended that 2 coats be applied. We recommend that you order more than you need to be sure that you have easily enough. The appearance of colours and shades may vary between different screens or devices. Prices include free mainland delivery to England, Wales and southern Scotland.
WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
Delivery
- Delivery is normally between 6 and 9 weeks after order
- Our prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.
- Please provide at least one DAYTIME PHONE NUMBER where you can be contacted during the daytime if needed.
- If you cannot be at home to receive the goods we can deliver by appointment - please contact us for options.
- This fencing is delivered as a very large pack. The driver can unload it quickly and easily without assistance. Often the driver can wheel the pack onto a level drive with a hard surface such as tarmac or block paving otherwise the delivery is kerbside. It is not normally possible to deliver the pack into the back garden. The pack is strapped and sealed on delivery but after the pack is opened the individual components are easy to carry.
ENGLAND AND WALES: Delivery is available to any mainland address in England or Wales but prices vary in different areas. You need to enter the first half of your postcode to see the correct prices in your local area. If you have not already done so click here to enter the FIRST HALF of your POSTCODE.
SCOTLAND: Delivery is included to all mainland addresses in DG, EH, FK, G, KA, KY, ML, PA1-19 and TD postcodes. To see the correct prices at any other Scottish address click here to enter the FIRST HALF of your POSTCODE.
OFFSHORE ISLANDS: Delivery is available to the Isle of Wight, the Scottish Islands, the Isle of Man and the Scilly Isles. To see the correct prices click here to enter the FIRST HALF of your POSTCODE.
NORTHERN IRELAND: Unfortunately we're currently unable to deliver to Northern Ireland at present.
REPUBLIC OF IRELAND: Unfortunately we're currently unable to deliver to Republic of Ireland at present.
AM DELIVERY: This low cost option is available at any mainland address in England and Wales. AM delivery is also available in Scotland to mainland address in DG, EH, FK, G, KA, KY, ML, PA1-19 and TD postcodes. The AM delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. If your delivery is outside the specified time the charge will be fully refunded.
SATURDAY AM DELIVERY: This low cost option is available at any mainland address in England or Wales. Saturday AM delivery is also available in Scotland to mainland address in DG, EH, FK, G, KA, KY, ML, PA1-19 and TD postcodes. The Saturday delivery service is not available in Northern Ireland, the Republic of Ireland or at any offshore address. To request delivery on Saturday just email us before 10.00am on Friday.
Ordering/Payment
- All prices include VAT.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Debit and MasterCard Debit. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.
Features and Accessories
DIY preservative - waterproof clear seal
DIY preservative - waterproof colour seal
Special delivery options - AM or Saturday

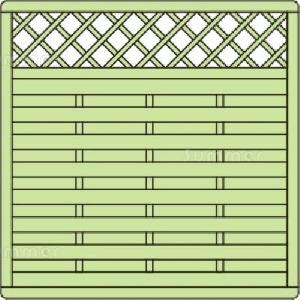

Elevation drawing 6x6

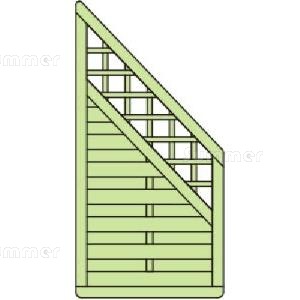

Elevation drawing link panel

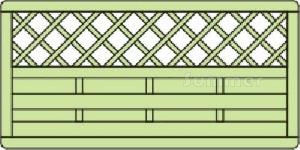

Elevation drawing 6x3
