Apex Log Cabin 166 - Verandah, Double Door
Summary:
The overall sizes including the 4' deep verandah range from 8'x10' (2.4x3.0m) to 12'x16' (3.6x4.8m). The sizes excluding the verandah range from 8'x6' to 12'x12'. These high specification log cabins with 34mm thick logs and durable hardwood doors and windows include a 4' deep verandah. Other luxury features include Georgian glazing with toughened safety glass. Options include decorative felt tiles. Standard features include double hinged doors with black antique ironmongery and a fully opening window. Installation is quicker with a prefabricated floor, roof and gables. Instructions are supplied for DIY self assembly. Low cost installation is available in many areas.
Prices fixed until Wednesday 11th December.
Click here to see our Log Cabin Stock List with fast delivery
The prices INCLUDE DELIVERY. Everything you need for assembly is supplied including instructions, fixings and all glazing and roofing materials. Local INSTALLATION and BASELAYING services are also available in many postcodes.
Size | 34mm Thick Logs, Felt Roof | Decorative felt tiles | Bearers | Eco-grid base, 200 tonnes per m2, fully paved | Eco-paving base, fully paved |
---|---|---|---|---|---|
7'10" x 9'10" | £2,469 | +£143 | +£115 | £140 | £325 |
7'10" x 11'10" | £2,768 | +£169 | +£123 | £182 | £360 |
7'10" x 13'9" | £3,031 | +£197 | +£143 | £197 | £415 |
9'10" x 9'10" | £2,857 | +£184 | +£130 | £170 | £406 |
9'10" x 11'10" | £3,086 | +£218 | +£143 | £206 | £442 |
9'10" x 13'9" | £3,449 | +£252 | +£169 | £237 | £515 |
9'10" x 15'9" | £3,635 | +£287 | +£178 | £255 | £552 |
11'10" x 11'10" | £3,854 | +£269 | n/a" | £267 | £483 |
11'10" x 13'9" | £4,051 | +£314 | n/a" | £303 | £565 |
11'10" x 15'9" | £4,408 | +£353 | n/a" | £328 | £606 |
Size | 34mm Thick Logs, Felt Roof | Decorative felt tiles | Bearers | Eco-grid base, 200 tonnes per m2, fully paved | Eco-paving base, fully paved |
Specifications
- 34mm thick tongued and grooved wall logs
- 1.2m deep verandah with balustrades to front and sides
- All timber used in the construction of this log cabin originates from sustainable forests
- Scandinavian redwood or whitewood
- Morticed and tenoned joinery doors and windows
- Durable hardwood doors and windows
- Doors ex 2" thick (44mm finished thickness)
- Georgian glazing with individual single panes of glass
- Fully glazed double doors with mortice lock fitted
- Black antique style hinges and handles
- Fully opening Georgian style window
- 8' wide log cabins include a 6 pane window
- All other log cabins include a 9 pane window
- Toughened safety glass throughout
- 15mm thick tongued and grooved roof boards (finished size after machining)
- 15mm thick tongued and grooved floor boards (finished size after machining)
- Strong 2" thick floor joists (45mm x 33mm finished size after machining)
- Strong 5" thick planed roof purlins (120mm x 33mm finished size after machining)
- Preservative treated floor and roof sections are prefabricated for quicker and easier installation
- Doors and windows are factory fitted
- Green mineral felted roof
- Front roof projection approximately 16" (400mm)
- Decorative scalloped fascias
- Door height 5'11" (1800mm)
- Door width 3'11" (1200mm)
- Internal eaves height at the lowest point inside 6'7" (2000mm)
- Ridge height 7'10" or 2400mm (8' wide)
- Ridge height 8'2" or 2500mm (10' and 12' wide)
- External cabin width 2.4m (7'10"), 3.0m (9'10") or 3.6m (11'9")
- External cabin depth excluding verandah 1.8m (5'11"), 2.4m (7'10"), 3.0m (9'10") or 3.6m (11'9")
- External cabin depth including verandah 3.0m (9'10"), 3.6m (11'9"), 4.2m (13'9") or 4.8m (15'9")
- Minimum base width 2.2m (7'3"), 2.8m (9'2") or 3.4m (11'2")
- Minimum base depth including verandah 2.8m (9'2"), 3.4m (11'2"), 4.0m (13'1") or 4.6m (15'1")
LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.
FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.
NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.
SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.
GEORGIAN GLAZING: These log cabins feature Georgian style glazing with individual panes of glass, unlike most Georgian style log cabins with criss cross shaped beads fitted over one large pane of glass. These smaller panes of glass are much harder to break and less dangerous when broken. The individual panes of glass are securely beaded within a substantial timber joinery frame. A considerable force is required to shatter the glass. Toughened safety glass is not normally necessary with such small panes of glass and if required it is more expensive in small panes.
TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.
SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct overall external wall sizes are listed alongside the price. These sizes include the verandah. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
Options
- The door and window positions can be reversed on site and do not need to be specified when ordering
- Pressure treated 3" x 3" floor bearers (lifetime preservative treatment)
- Decorative red, green or black mineral felt tiles

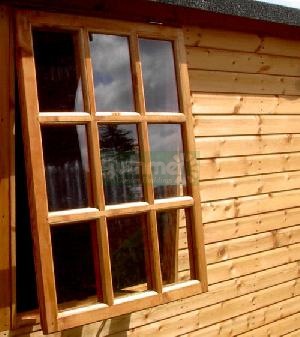

- Fully opening 9 pane Georgian style side windows can be fitted in either or both side walls if required
- Floor insulation - sufficient insulation is provided to insulate the cabin floor but not the verandah
- Roof insulation - sufficient insulation is provided to cover the entire roof, including the verandah
- Solar powered inside lights
- Solar powered outside lights
- Recycled plastic base kits
- A choice of composite decking kits
- Portable indoor gas heaters - no need for an electricity supply or trailing leads
- A selection of microporous wood preservatives in a wide choice of colours
- If access to the site is through the house or through a small archway the normal floor and roof panels may be too large. With advance warning your floor and roof can be specially made in smaller sections designed to pass through a normal single door.
FLOOR BEARERS: Bearers are substantial pressure treated beams under the floor, which will prolong the life of your log cabin. The bearers are the only part of the log cabin which is in contact with the ground and they are pressure treated for longer life. The bearers also raise the floor above the ground. This allows air to circulate under the floor to reduce dampness and also reduces saturation of the lower cladding boards.
DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.
UNDERFLOOR INSULATION: The underfloor insulation is designed to suit our timber floor. The rigid insulation boards are suspended between the floor joists and above the ground. The top face of the insulation is just below the floorboards. The solidity of the floor is unaffected by this design. The internal appearance is also unchanged with attractive and durable tongued and grooved boards. Detailed instructions are supplied. The floor insulation is expanded polystyrene, certified by the British Board of Agrement. It is 25mm thick to ensure ample clearance above the ground, which optimizes the performance of the insulation.
ROOF INSULATION: Our roof insulation is 50mm thick polyurethane foam with reflective silver alloy laminate facings on both sides. It is certified by the British Board of Agrement. The roof insulation is laid over the roof boards and below the roof covering. This ensures that the internal appearance is unchanged with attractive tongued and grooved boards. No internal lining boards are required. The kit features rigid foam boards which are lightweight and easy to install. If your order includes roofing felt or felt tiles longer nails are included for fixing through the insulation. If your order includes cedar shingles or granular steel tiles additional decking boards are supplied which are laid over the insulation to provide a suitable surface for fixing the tiles. Detailed instructions are supplied. The roof insulation increases the ridge height by approximately 50mm which may be of critical importance if you need to keep the overall height below 2.5m for planning purposes.
RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these recycled polypropylene pavers simply click together with no fixings needed. The interlocking design helps to spread weight and ensures greater rigidity. Weed membranes are not needed below a timber floor. The self draining design prolongs the life of a timber floor. Unlike paving or concrete our plastic bases are fully relocatable. The base is normally at least 2" or 50mm larger than your building. Where space permits the base is normally laid full size but if required in a tight location our plastic pavers can be cut. Fast delivery within 3-5 days ensures that you can start work quickly.
ECO-GRID BASE KITS: Eco-grids are recommended if the sub-base is soil, sand or pea shingle but not on hard surfaces such as concrete, because the underside is not flat. Integral pegs on the underside help to level the base grids more easily in soil or sand or shingle. Our eco-grid plastic bases can support up to 200 tonnes per square metre. We offer exactly the same eco-grids as driveways and carparks. Gravel or shingle infill is not required below a timber floor. Whatever you store in your building, our eco-grids will support the weight easily. Each eco-grid is 472mm x 472mm and 40mm thick with an immensely strong 60x60mm hexagonal cell structure. Extensive preparation is not normally required - just level the soil and lay the pavers directly on soil or on a thin layer of sand or pea shingle. Any exposed edges around the base can be left unfilled or filled with gravel or shingle.
ECO-PAVING BASE KITS: Eco-paving is recommended if the sub-base is a hard surface such as concrete or paving slabs, because the pavers feature a flat and level underside. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. Each eco-paver is 385mm x 385mm and 40mm thick. The pavers are quickly and easily easily laid over an existing hard surface.
WPC COMPOSITE DECKING KITS: This superb quality WPC wood plastic composite decking closely resembles real wood, with the same look and feel. However, it is virtually maintenance free and it will never rot. At a glance it is difficult to tell the difference between this composite material and real timber decking with a stained finish. Furthermore, the similarities are not skin deep like a thin veneer. The realistic finish has a fibrous surface which looks similar to the grain of real wood. This synthetic composite is also heavier and stronger than real wood. The strength, durability and lack of maintenance make this superb decking a popular choice with pensioners and discerning commercial buyers such as care homes. Occasional cleaning with soapy water normally restores the original appearance. If any dirt or stains become ingrained after prolonged neglect even the most stubborn marks can be cleaned with a pressure washer.
Our WPC composite decking is a revolutionary material which provides all the benefits of real wood without the maintenance. It can be left outside uncovered all year round. Unlike real wood this synthetic wood is a weatherproof material with no knots, splinters, machining marks or other imperfections. It will never develop splits or shakes and no sap will ever ooze out of it. Our wood plastic composite is an equal mixture of real wood and recycled plastic. Even the wood is a mixture of sawdust and unusable offcuts, so it is the ultimate environmentally friendly alternative to wood. The colour pigments are mixed in before the powdered composite is moulded into shape, so the colour runs all the way through the finished product. The boards are completely impervious to water. The boards can be sawn, drilled and screwed, just like real wood. You can fix it with standard woodscrews. Being heavier and denser than real wood, screw fixings are actually stronger in composite boards.
MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.
Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.
Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.
WATERPROOF COLOUR SEAL - DELIVERED TO YOUR DOOR: This advanced water-based microprous timber treatment uses the latest high-tech nanotechnology to create a long-lasting waterproof wood coating that is environmentally friendly. It is suitable for use on all softwood and hardwood products and is especially recommended for use on pressure treated timber, including sheds, summerhouses, gazebos, fencing and garden furniture. This timber treatment will colour, protect and enhance your exterior wood. It contains a mould inhibitor to protect the coating and can be used on all outside and inside timber. It gives a traditional matt wood stain finish in a range of natural colours. It can easily be applied by sprayer, brush or roller. It is recommended that the second coat is applied as soon as the first coat is touch dry. We advise for ultimate performance the timber has a wood preservative pre-treatment. For the first treatment, two coats are recommended and will give a traditional wood stain finish that is long lasting. A further coat is recommended every 2-5 years. One litre covers approximately 10-12 square metres. Coverage varies according to the smoothness of the surface and the porosity of the timber. On average five litres covers a 12x8 shed with two coats and ten litres covers a 10x20 with three coats. It is recommended that 2 coats be applied. We recommend that you order more than you need to be sure that you have easily enough. The appearance of colours and shades may vary between different screens or devices. Prices include free mainland delivery to England, Wales and southern Scotland.
WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.
Delivery
- Delivery is normally between 4 and 6 weeks after order
- Our prices for log cabins include all delivery charges - unlike others we do not add delivery charges during the checkout process.
YOUR LOG CABIN UNLOADED FREE WITHOUT ASSISTANCE: The driver will unload your log cabin quickly and easily without assistance. The cabin is normally unloaded on the drive or on the verge at the front of your property. Most of the components are easy to carry. The wall logs can be carried one or two at a time. An unusual feature of these log cabins is the prefabricated floor and roof panels. Although this makes installation easier the panels are sometimes too large to pass through a normal single door. The panel sizes vary according to the size of your log cabin. This may cause a problem at some sites. If you have any concerns about the access at your property please mention it when you order. If required we can make the panels smaller. There is no charge for this but we need advance notice.
Ordering/Payment
- All prices for log cabins include VAT.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Debit and MasterCard Debit. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.
Installation
- Low cost installation available in many areas
- Pay separately on completion
THOUSANDS OF SATISFIED CUSTOMERS: Since we were established in 1981 we have connected thousands of customers to our unique network of independent fitters and baselayers. Specialist teams have offered to install our buildings or lay bases in many areas at low fixed rates in return for recurring work. The prices are offered within a specific area and subject to conditions. You deal direct with the fitter or baselayer which keeps the prices low and you pay them separately on completion. We make no commission except for a small upfront referral fee. The fitters and baselayers pay us nothing and we pay them nothing. Although we do not manage or supervise the work directly we listen carefully to feedback and any team who provides a poor service is removed from our network. For decades this effective system has provided a low cost option for our customers with high levels of satisfaction.
LOW PRICES FOR BASELAYING AND INSTALLATION: Low cost fitters and baselayers are available in many areas. To see the prices in your local area just enter the first half of your postcode at the top of every page or CLICK HERE. All of the specialist teams available in your area are listed alongside the building prices. To see their prices and conditions just click on the blue "i" symbol next to each team. To order online just add your chosen fitter or baselayer to your shopping basket before you proceed to the checkout.
NO FITTERS IN YOUR AREA? If you cannot see any fitters or baselayers in your area please contact us. We can often obtain a competitive quote from a team who is willing to travel a bit further. If you experience any other problems, for example entering your postcode or finding the fitting prices just contact us.
FITTERS & BASELAYERS REQUIRED - REGISTER FREE: Give your business a boost - we can put you in touch with customers in your local area! We need more fitters and base layers in all areas across England, Scotland and Wales. Register now - its free! It only takes a few minutes to register. Just CLICK HERE to apply online.
Offers
SPECIAL OFFER . . . LOWER PRICE FLOOR AND ROOF INSULATION . . . ONLY UNTIL WEDNESDAY 11th DECEMBER!
- We've just reduced the price of floor and roof insulation if you buy both!
- Prices are only reduced until Wednesday 11th December so ORDER NOW to avoid disappointment!
