Wooden Log Garage 416 - Apex, Personnel Door
Play Video

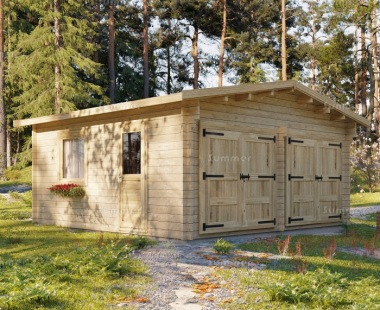

Pictures 1 and 2 show the standard 6.0x6.0m wooden double garage with 45mm thick logs. Pictures 3 and 4 show close up views of the twinskin corner construction.


This high quality wooden double garage is approximately 20'x16' or 20'x20' (6.0x5.0m or 6.0x6.0m) with a choice of 45mm logs or 140mm twinskin. The price includes two sets of double hinged main doors, a personnel door and an opening window with large pane glazing. Premium double glazing is included as standard. Roof options include insulation, untearable roofing felt, felt tiles, genuine cedar shingles and granular steel roof tiles. Additional windows are available as an option. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • All timber used in the construction of these log cabins originates from sustainable forests
  • Interlocking tongued and grooved wall logs with a choice of single log or twinskin construction
  • All logs double grooved for superior draughtproofing
  • Strong 19mm thick tongued and grooved roof boards
  • Substantial 7"x3" roof purlins (approximate finished size 60x170mm)
  • Pressure treated 3"x2" foundation beams (approximate finished size 75x50mm)
  • Morticed and tenoned joinery doors and windows
  • Modern large pane plain glazing
  • Mortice lock with handles and keys
  • Chrome finish personnel door and window handles
  • 1 opening side window approximately 1.05m wide x 1.03m high (3'5" x 3'4")
  • 2 sets of fully boarded double hinged main doors
  • Main doors 2.5m wide x 1.94m high (8'2" x 6'4")
  • Half boarded single hinged personnel door
  • Single hinged door approximately 0.85m wide (2'9")
  • Door clear opening height approximately 1.84m high (6'0")
  • Door head clearance approximately 1.94m high (6'4")
  • Double glazed doors and windows (no plastic, acrylic, styrene or perspex)
  • Premium double glazed windows with 28mm thick double glazing units, 20mm air gaps, weatherstripped sash openings and profiled aluminium cills for durability
  • Premium double glazed doors with 16mm thick double glazing units with 8mm air gaps
  • Chamferred top wall logs
  • Pre assembled gables
  • Eaves height approximately 2.16m (7'1")

6.0x5.0m log garage

  • External size 6.0m wide x 5.0m long (19'8" x 16'5")
  • Internal size (45mm logs) 5.71m wide x 4.71m long (18'9" x 15'5")
  • Internal size (twinskin) 5.52m wide x 4.52m long (18'1" x 14'10")
  • Minimum base size 5.8m wide x 4.8m long (19'0" x 15'9")
  • Front roof canopy projection approximately 0.5m (1'8")
  • Ridge height approximately 3.07m (10'1")

6.0x6.0m log garage

  • External size 6.0m wide x 6.0m long (19'8" x 19'8")
  • Internal size (45mm logs) 5.71m wide x 5.71m long (18'9" x 18'9")
  • Internal size (twinskin) 5.52m wide x 5.52m long (18'1" x 18'1")
  • Minimum base size 5.8m wide x 5.8m long (19'0" x 19'0")
  • Ridge height approximately 3.07m (10'1")

LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.

FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.

WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint. Thicker logs also provide improved insulation.

CHAMFERRED TOP WALL LOGS: This high specification building features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

ALUMINIUM WINDOW CILLS: Our high performance premium windows feature profiled aluminium external cills for durability. The modern profile design also allows rainwater to drain away from within the window which prolongs the life of the window and the double glazed units.

SIZES - LENGTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang.
