Apex Metal Shed 512 - Woodgrain Effect, Optional Installation
Play Video
Play Video

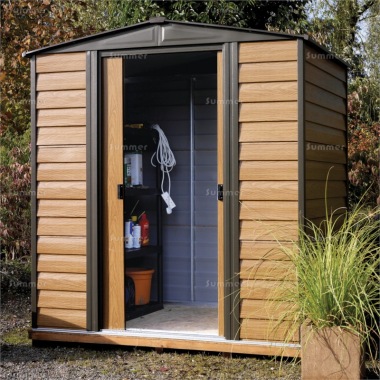

The pictures show the 6'x5' wood-effect metal shed with optional timber floor.


This metal shed is approximately 6'x5' (1940x1510mm) and is supplied with attractive woodgrain wall panels and contrasting coloured trims and fascias. Heavier than most other comparable metal sheds, all framing and cladding is hot dip galvanized steel. The cladding and doors are resin coated on both sides. Sliding double doors are included in the 6' wide wall with lockable handles. Strong foundation rails are also included. Options include a timber floor and a base anchor kit to ensure that your shed is fixed down securely. All fixings and instructions are included. An optional installation service is available on sheds purchased with the internal timber floor.

Back to the Top
  • Hot dip galvanized steel framing
  • Hot dip galvanized steel cladding panels with a tough epoxy resin coating inside and woodgrain foil laminate outside
  • Horizontal wall panels give an appearance similar to weatherboard cladding
  • Woodgrain foil laminate to external surfaces
  • Attractive and durable woodgrain finish which resembles the appearance of natural wood
  • Woodgrain finish to external wall cladding
  • Contrasting colour to gables, door frame and other trims
  • Pale colour to all internal cladding
  • Double sliding doors in the 6'4" wide front wall
  • Pair of door handles pre-drilled with holes to suit most padlocks
  • Horizontal and diagonal door framing
  • Cladding sheets are corrugated for extra strength
  • Profiled corner posts to provide a strong and waterproof corner joint
  • Foundation rails
  • External ridge height approximately 6'7" (2010mm)
  • Eaves height approximately 5'11" (1810mm)
  • Door height approximately 5'9" (1760mm)
  • Door opening width approximately 2'8" (810mm)
  • External roof size approximately 6'4" wide x 4'11" deep (1940mm x 1510mm)
  • Minimum base size approximately 6'2" wide x 4'9" deep (1880mm x 1450mm)
  • Internal size approximately 5'11" wide x 4'6" deep (1810mm x 1380mm)
  • This shed is easy to deliver if access is restricted - all sections are designed to pass through a normal single door

GALVANIZED STEEL CLADDING: These great value buildings are made with galvanized steel throughout. All framing and cladding is hot dip galvanized steel. This is a process by which steel is coated with zinc to protect it from corrosion. The cladding is subsequently coated with epoxy resin, partly to protect the zinc coating itself and partly to add colour. The factory finish is described as primer although a top coat is not normally needed. The combination of a zinc coating with epoxy resin provides durable protection even if the surface is scratched.

STRONG FRAMING: In common with all other steel buildings, including even the largest sports stadia, retail superstores and warehouses, steel cladding sheets are surprisingly thin. The strength of steel buildings is provided by the frame, although the corrugations of the cladding sheets do provide a degree of extra strength. These metal sheds feature strong galvanized steel framing members and the completed frame is rigid.

DOOR SIZES - HEIGHT AND WIDTH: The door height listed above is the approximate head clearance height. The actual clear height of the opening is approximately 1" or 25mm less due to the door threshold. The approximate door opening width listed above is the minimum clearance which is safe to use when considering whether to purchase this building. We recommend allowing at least another 3" or 75mm all round any large objects to ensure easy access on a regular basis. In practice the actual opening width may be a few inches wider if the doors are set up with care.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external sizes are listed alongside the price. The sizes listed alongside the prices are the external roof sizes. The external wall sizes may be smaller. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. All sizes are approximate.
