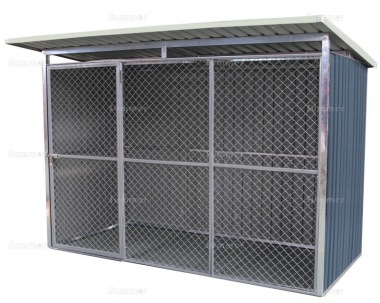

Metal Dog Run 366 - Pent Roof, Galvanized Steel

• Hot dip galvanized steel framing
• Hot dip galvanized steel cladding panels with a tough epoxy resin coating inside and out
• Attractive grey colour to external cladding
• Pale colour to all internal cladding
• Large diamond mesh front wall
• Mesh panels come pre-assembled for ease of installation
• Cladding sheets are corrugated and ribbed for extra strength
• Corner cladding sheets are folded ninety degrees and overlapped to provide a strong and waterproof corner joint
• Strong galvanized steel foundation rails
• Single hinged door approximately 2'7" wide x 5'3" high (800mm x 1590mm)
• Sliding padbolt to suit most padlocks (padlock not supplied)
• Overall height approximately 6'1" (1860mm)
• Eaves height approximately 5'4" (1620mm)
• Front roof canopy approximately 1'4" (400mm)
• External roof size 7'3" deep x 8'6" wide (2200mm x 2600mm)
• External cladding size approximately 5'11" deep x 8'2" wide (1800mm x 2500mm)
• Overall weight 106kg excluding floor - heavier than similar buildings supplied by others
• This metal dog run is easy to deliver if access is restricted - all sections are designed to pass through a normal single door

GALVANIZED STEEL CLADDING: These great value buildings are made with galvanized steel throughout. All framing and cladding is hot dip galvanized steel. This is a process by which steel is coated with zinc to protect it from corrosion. The cladding is subsequently coated with epoxy resin, partly to protect the zinc coating itself and partly to add colour. The factory finish is described as primer although a top coat is not normally needed. The combination of a zinc coating with epoxy resin provides durable protection even if the surface is scratched.

STRONG FRAMING: In common with all other steel buildings, including even the largest sports stadia, retail superstores and warehouses, steel cladding sheets are surprisingly thin. The strength of steel buildings is provided by the frame, although the corrugations of the cladding sheets do provide a degree of extra strength. These metal sheds feature strong galvanized steel framing members and the completed frame is rigid.

HEAVY PACKS: As a rough and ready rule, the heavier a metal building is the stronger it is. Our buildings are heavier than most similar metal buildings which is why we publish the weight. The packs are very heavy but surprisingly compact, especially the cladding sheets which are packed tightly together.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.

• A wide choice of floor options and base anchor fixings
• No floor
• Timber base kits - overall base size 6'7"x9'10" (2000x3000mm)
• Plastic base kits - overall base size 6'4"x8'10" (1925x2695mm)
• Base fixings
• Concrete hammer fixings
• Corner brackets
• Solar powered lights
• Padlocks

NO FLOOR: This building can be built without a floor if it is placed directly onto concrete, paving slabs or decking. This is normally the cheapest option if a suitable area of existing hardstanding is available. If so, the pre-drilled galvanized steel foundation rails should be fixed into your base. If the base is timber, the screws supplied with your building can be used to fix the pre-drilled steel foundation rails into the base. We also offer a selection of stronger base fixings as low cost options.

TIMBER AND PLASTIC BASE KITS: Our easy to install base kits feature a choice of timber or plastic pavers. The pavers can be laid directly on concrete, paving or decking. The finished base is a few inches larger than your building. No part of the building is in direct contact with the ground and valuable items such as lawnmowers and steel tools are stored off the ground. This prolongs the life of your building and the contents. Our optional fixing packs include suitable screws to fix the foundation rails of your building firmly into the base. If your pavers are laid on concrete or paving we also recommend our optional hammer fixings.

PRESSURE TREATED TIMBER BASES: These easy to install timber decking tiles feature boards with a reeded surface finish and a small gap between each board to allow for expansion and contraction of the timber and drainage. All timber is pressure treated, a lifetime preservative treatment. Unlike slabs or concrete these deck tiles are lightweight and fully relocatable. Boarding or matting can be laid over the tiles if a smooth floor is required. Each paver is 500mm x 500mm with 14mm thick decking boards, approximately 21mm gaps and 28x12mm joists (finished sizes after machining).

PLASTIC BASES: Our durable and self draining eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these polypropylene pavers simply click together with no fixings needed. The interlocking design helps to spread weight and ensures greater rigidity. Unlike paving or concrete our plastic bases are fully relocatable. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. The interlocking design combines the weight of the contents with the weight of your building to enhance the stability of the structure.

BASE FIXING KITS: Our optional base fixing kits include sufficient screws to fix the foundation rails of our metal buildings to a plastic or timber base. The screws supplied are longer, wider and stronger than the screws supplied with the building. The design of the screws also ensures a tighter fit and a more secure fixing.

CONCRETE HAMMER FIXINGS: We recommend hammer fixings for any metal building which is sited on a solid base of concrete or paving to ensure that it is securely fixed down. The pack includes sufficient hammer fixings to fix the pre-drilled foundation rails into the base. The fixings are drive in hammer screws with a nylon sleeve. A masonry drill bit is also available as an option if required. Drive in hammer fixings are simple to use. First the hole is drilled in the masonry and then the fixing is hammered home. If required the screw head allows easy removal with a screwdriver.

CORNER BRACKETS: Corner brackets are recommended for any metal building which is subject to frequent use or sited in an exposed area. The corner brackets strengthen the corners and also make it easier to fix your building down into a solid base. The kit includes 4 galvanized steel corner brackets. Screws are included to fix the brackets into the foundation rails. Screws and nylon plugs are also supplied for fixing into bricks, concrete or paving slabs.

SOLAR POWERED LIGHTS: These ingenious and affordable solar powered lights are easy to install with no mains wiring and they cost nothing to run. During the day the externally mounted solar panel converts daylight into electricity and recharges the batteries. The solar panel is weatherproof and suitable for outside use. It is normally positioned high on the walls of your garden shed or on the roof. Our solar internal lights solve the problem of seeing inside your garden shed at night. Our solar security lights illuminate the approach to your garden shed at night and may also deter burglars. After dusk the passive infra red movement detector switches itself on when it detects movement. The more expensive solar lights are brighter and stay on for longer.
