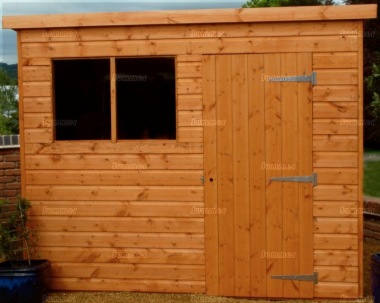

Pent Shed 051 - Shiplap, T and G Floor and Roof

• All timber used in the construction of this shed originates from sustainable forests
• Scandinavian redwood or whitewood
• These sheds are treated by total immersion in a high quality preservative
• Strong ex 2" planed framework (45mm x 27mm finished size after machining)
• 12mm deal tongued and grooved shiplap cladding (finished size after machining)
• 12mm deal tongued and grooved floor boards (finished size after machining)
• 12mm deal tongued and grooved roof boards (finished size after machining)
• Strong ex 2" floor joists
• Strong ex 2" planed roof purlins (45mm x 27mm finished size after machining)
• Windows are included in the tall side wall. The overall window area varies according to the door position. If the door is in the same side wall as the windows the window area may be less.
• Windows glazed with 3mm horticultural glass and vertical timber beads with external silicone seal
• 5'7" high x 2'6" wide (1700mm x 760mm) ledged and braced door with galvanised hinges on the right when viewed from outside
• Mortice lock fitted
• Green mineral felted roof
• Internal height at the lowest point inside 5'9" (1770mm)
• Eaves height at rear 6'2" (1870mm)
• Ridge height at front 6'7" (2023 mm)

OPTIONAL SAME DAY INSTALLATION - THE BENEFITS: Our optional in house installation service is not just convenient, it is also your assurance of a better quality garden shed. This is because any building with in house installation available is invariably better made using quality components. Over time regular feedback from fitters ensures that design faults and weaknesses have been rectified. Same day installation is convenient for you and cost effective because it saves travelling costs. The fitters will deliver your garden shed and then install it, all at the same time. Others send sub-contract fitters separately, often from far away and often a week or two after the delivery. Waiting for the fitter can be very frustrating. Sub-contract fitting is also much more expensive because of the travelling costs. The fitting service does not include base preparation. A flat and level base is required, which can be made using concrete, paving slabs, pressure treated timber or plastic. In many areas we offer a base laying service as an option. We also offer heavy duty plastic base kits in all areas.

SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.

QUALITY CONSTRUCTION: A feature of these quality sheds is the heavy duty doors. The joinery door frames are fully morticed and tenoned with substantial framing and a good quality lock. The windows are glazed with glass and glazing beads. Many sheds include thin styrene glazing, which provides little security or weather protection. Another feature is the substantial 2" thick wall framing spaced close together, which ensures a more robust and durable building.

PLANED SHIPLAP CLADDING: These garden sheds feature smooth planed fully interlocking tongued and grooved shiplap wall cladding. This design ensures that rainwater drains faster and the timber dries quicker, which ensures a longer life for your garden shed. Our shiplap is fully tongued and grooved which is stronger than the half lap shiplap or rebated shiplap used by some others.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.

• Installation
• High quality external paint system offered in a wide choice of colours. The coloured paint finish is applied externally to the immersion treated timber. Choice of one or two colours.
• Choice of 5 door and window layouts
• Pressure treated 3" x 3" floor bearers (lifetime preservative treatment)
• Heavy duty floor with ex 3/4" thick tongued and grooved boards (15mm finished size after machining)
• Toughened glass to BS6206 Class A
• One piece EPDM rubber roof membrane, a tough roof surface which is virtually maintenance free
• Opening windows
• Heavy duty wooden shelf units
• Wooden shelves
• Portable indoor gas heaters - no need for an electricity supply or trailing leads
• Timber frame platform base - fully fitted (must be installed onto existing solid patio base)
• This shed can be made in smaller sections if access is restricted

COLOURED EXTERNAL PAINT FINISH: This building is available treated with a high quality microporous paint system in a choice of opaque colours. Microporous woodstains are impervious to water but not to water vapour, which allows the wood to breathe. Microporous woodstains offer superior absorption and protection plus greater durability. One or two colours can be chosen, with the doors, windows and fascias being painted the same colour as the external cladding or different. The appearance of colours and shades may vary between different screens or devices. Although our opaque preservative finish largely obscures the surface of the wood, the grain and other natural features may still be discernible through variations in colour and texture.

FLOOR BEARERS: Bearers are substantial pressure treated beams under the floor, which will prolong the life of your garden shed. The bearers are the only part of the garden shed which is in contact with the ground and they are pressure treated for longer life. The bearers also raise the floor above the ground. This allows air to circulate under the floor to reduce dampness and also reduces saturation of the lower cladding boards.

TIMBER FRAME BASE - FULLY FITTED: A pressure treated timber frame base is a substantial platform which can be built onto an existing firm base, such as slabs, concrete or decking. The frame is made from ex 4"x2" pressure treated timber bearers. Pressure treatment is a lifetime preservative treatment. Additional floor bearers are not needed as the floor will be a few inches above the ground and the timber base allows for better airflow than other base options, which improves the longevity of your new building. The floor of your building is laid on the completed platform, which is designed to be the perfect size to suit your building. This is an ideal option if the building will be going on an oversize existing patio base. It can also be a useful way of levelling out an imperfect base. This base option isn't suitable for areas covered by grass, soil, shingle, etc. The prices include installation on the same day as your building. The prices do not include a survey and assume no excavation or obstructions such as existing buildings, garden walls, compost heaps, trees, plants or flowers beds. You should also avoid covering manhole covers, pipes and drains.

HEAVY DUTY FLOOR: The standard floor is stronger than most garden shed floors and suitable for normal use. It features 12mm thick tongued and grooved boards with 2" thick floor joists spaced close together for improved strength. The heavy duty floor features the same bearer size and spacing but with 15mm thick tongued and grooved boards, which is exceptionally strong and suitable for storing heavier items.

ONE PIECE EPDM ROOF: A tough EPDM rubber membrane is made in one piece to the size of your roof with no joins. It is easily fitted within a few minutes at normal temperatures with no heat required. EPDM rubber is completely inert, UV stable and not affected by extreme temperatures. It never perishes and it will not rot, split, crack or degrade. EPDM rubber lasts for years with little or no maintenance. It has been widely used in flat roofing for over 40 years from Alaska to the Middle East. It is increasingly popular in the UK where it is widely used for re-roofing flat roof garages and extensions. Even in extreme weather conditions EPDM rubber remains flexible and it will stretch to absorb any movement as a timber roof expands and contracts with the seasons.

TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.

SOLAR POWERED LIGHTS: These ingenious and affordable solar powered lights are easy to install with no mains wiring and they cost nothing to run. During the day the externally mounted solar panel converts daylight into electricity and recharges the batteries. The solar panel is weatherproof and suitable for outside use. It is normally positioned high on the walls of your garden shed or on the roof. Our solar internal lights solve the problem of seeing inside your garden shed at night. Our solar security lights illuminate the approach to your garden shed at night and may also deter burglars. After dusk the passive infra red movement detector switches itself on when it detects movement. The more expensive solar lights are brighter and stay on for longer.

BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.

RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these recycled polypropylene pavers simply click together with no fixings needed. The interlocking design helps to spread weight and ensures greater rigidity. Weed membranes are not needed below a timber floor. The self draining design prolongs the life of a timber floor. Unlike paving or concrete our plastic bases are fully relocatable. The base is normally at least 2" or 50mm larger than your building. Where space permits the base is normally laid full size but if required in a tight location our plastic pavers can be cut. Fast delivery within 3-5 days ensures that you can start work quickly.

ECO-GRID BASE KITS: Eco-grids are recommended if the sub-base is soil, sand or pea shingle but not on hard surfaces such as concrete, because the underside is not flat. Integral pegs on the underside help to level the base grids more easily in soil or sand or shingle. Our eco-grid plastic bases can support up to 200 tonnes per square metre. We offer exactly the same eco-grids as driveways and carparks. Gravel or shingle infill is not required below a timber floor. Whatever you store in your building, our eco-grids will support the weight easily. Each eco-grid is 472mm x 472mm and 40mm thick with an immensely strong 60x60mm hexagonal cell structure. Extensive preparation is not normally required - just level the soil and lay the pavers directly on soil or on a thin layer of sand or pea shingle. Any exposed edges around the base can be left unfilled or filled with gravel or shingle.

ECO-PAVING BASE KITS: Eco-paving is recommended if the sub-base is a hard surface such as concrete or paving slabs, because the pavers feature a flat and level underside. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. Each eco-paver is 385mm x 385mm and 40mm thick. The pavers are quickly and easily easily laid over an existing hard surface.

RESTRICTED ACCESS: A quality feature of these buildings is that they are made in large rigid panels. If access is restricted, your building can be specially made in smaller sections designed to pass through a normal single door. The smaller sections are designed to be at least as strong as the larger panels normally supplied. There is a charge for this option and notice is required with the order. For more details see "Other options".
