Lean To Gazebo 160 - Powder Coated Aluminium, Retractable Canopy
1
2
3
Play Video

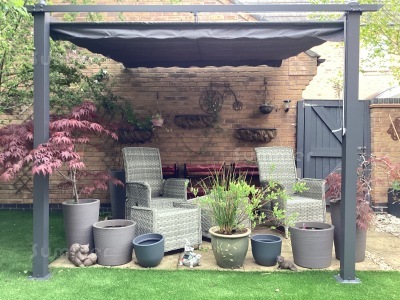

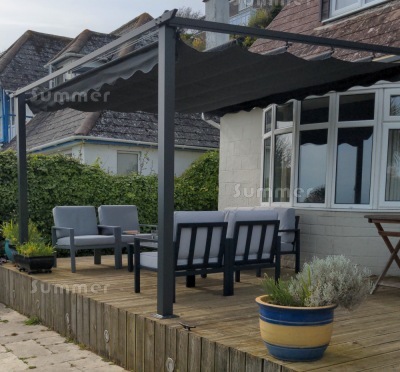

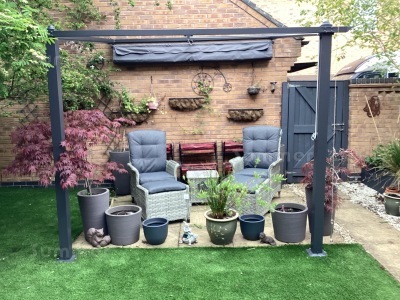

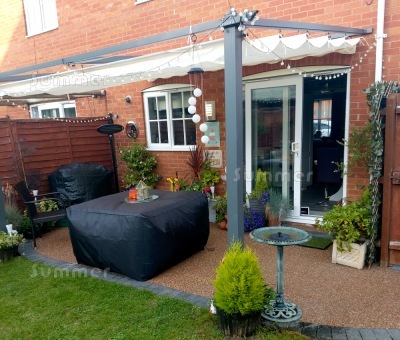

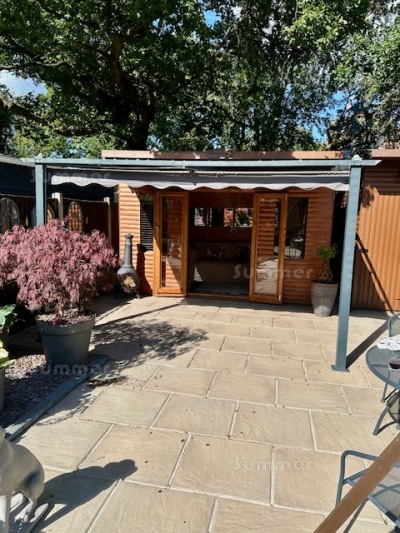

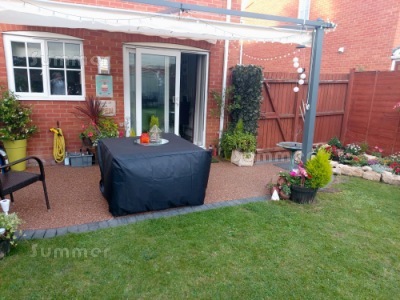

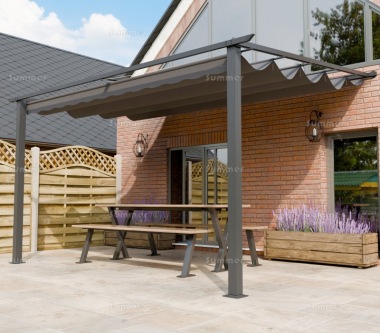

The pictures show the standard 3x4m pergola.

Summary:

This lean to metal gazebo projects approximately 10' (3.0m) from the wall and is available 10' or 13' long (3.0m or 4.0m). The posts and beams are durable powder coated aluminium. The posts are 90mm x 90mm box section aluminium with an attractive fluted pattern. The beams feature decorative scalloped ends. The showerproof polyester canopy is fully retractable so it can be folded away when not in use. The canopy is also easy to remove if required. Base plates with pre-drilled holes are included to ensure easy fixing into any surface including concrete, slabs, decking or lawn. The overall height is approximately 8'4" (2550mm) but this can be reduced by cutting down the corner posts. Instructions are supplied for DIY self assembly.

Back to the Top
  • Powder coated aluminium posts and roof beams
  • 90mm x 90mm box profile aluminium posts with a fluted pattern
  • 50mm high x 30mm wide box profile aluminium roof beams
  • 100mm high x 50mm wide ridge fixing plates with pre drilled holes
  • Decorative scalloped rafter ends and post caps
  • Retractable canopy can be folded away when not in use
  • The canopy features a simple and effective manually operated pulley system
  • Powder coated steel rails reinforce the canopy fabric for easier and smother operation
  • Showerproof canopy features 180 grammes per square metre treated polyester
  • Canopy is easy to remove if required
  • Base plates included with pre-drilled holes
  • Ground anchor pegs included
  • Easy to assemble or dismantle
  • External height at the front approximately 7'5" (2250mm)
  • Overall external height at the rear approximately 8'4" (2550mm)
  • The height can be reduced by cutting the bottom off the posts but this will also require re-drilling two holes per post for the base plates
  • Projection from wall approximately 9'10" (3000mm)
  • Length approximately 9'10" or 13'1" (3000mm or 4000mm)

POWDER COATED ALUMINIUM: Extruded hollow section aluminium profiles are cut to size and drilled or welded to form a lightweight and strong frame. Aluminium is ideal for outside use because it does not corrode like steel. The aluminium is powder coated, a tough paint finish which has excellent weathering properties.

RETRACTABLE AND REMOVABLE SHOWERPROOF CANOPY: This gazebo features a retractable awning which can be folded away within seconds when not in use and pulled open just as easily. The canopy is also removable. At the end of the summer season the canopy should be removed for winter storage. The canopy should also be removed in windy weather. These simple measures will prolong the life of the canopy and protect your investment. The canopy is primarily a sunshade but it is also showerproof. It provides protection from light rain for a short period but some water ingress may occur during a prolonged downpour.
