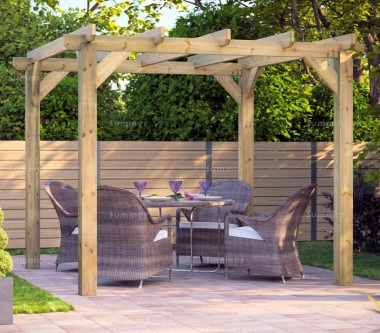

Wooden Pergola 779 - Pressure Treated, Strong Posts

• Pressure treated timber throughout (lifetime preservative treatment)
• All timber used in the construction of these pergolas originates from sustainable forests
• Timber sizes are nominal i.e. before machining, unless described as finished size
• Strong ex 6"x6" corner posts (finished size 140mm x 140mm)
• Roof timbers ex 6"x2" (finished size 145mm x 45mm)
• Strong corner braces
• Posts can be cut down to reduce the height if required
• Metal bolt down post support brackets
• Internal height to underside of eaves beam approximately 7'3" (2.2m)
• Overall external height approximately 7'11" (2.42m)

10'x10' pergola

• Overall roof size 9'10" x 9'10" (2.99m x 2.99m)
• External size to outside of the corner posts 8'10" x 8'6" (2.7m x 2.6m)
• Minimum base size 8'10" x 8'6" (2.7m x 2.6m)

10'x12' pergola

• Overall roof size 9'10" x 11'9" (2.99m x 3.59m)
• External size to outside of the corner posts 8'10" x 10'6" (2.7m x 3.2m)
• Minimum base size 8'10" x 10'6" (2.7m x 3.2m)

10'x14' pergola

• Overall roof size 9'10" x 13'9" (2.99m x 4.19m)
• External size to outside of the corner posts 8'10" x 12'6" (2.7m x 3.8m)
• Minimum base size 8'10" x 12'6" (2.7m x 3.8m)

10'x16' pergola

• Overall roof size 9'10" x 15'8" (2.99m x 4.78m)
• External size to outside of the corner posts 8'10" x 14'5" (2.7m x 4.39m)
• Minimum base size 8'10" x 14'5" (2.7m x 4.39m)

10'x18' pergola

• Overall roof size 9'10" x 17'8" (2.99m x 5.38m)
• External size to outside of the corner posts 8'10" x 16'4" (2.7m x 4.99m)
• Minimum base size 8'10" x 16'4" (2.7m x 4.99m)

10'x20' pergola

• Overall roof size 9'10" x 19'7" (2.99m x 5.98m)
• External size to outside of the corner posts 8'10" x 18'4" (2.7m x 5.59m)
• Minimum base size 8'10" x 18'4" (2.7m x 5.59m)

12'x10' pergola

• Overall roof size 11'9" x 9'10" (3.59m x 2.99m)
• External size to outside of the corner posts 10'10" x 8'6" (3.3m x 2.6m)
• Minimum base size 10'10" x 8'6" (3.3m x 2.6m)

12'x12' pergola

• Overall roof size 11'9" x 11'9" (3.59m x 3.59m)
• External size to outside of the corner posts 10'10" x 10'6" (3.3m x 3.2m)
• Minimum base size 10'10" x 10'6" (3.3m x 3.2m)

12'x14' pergola

• Overall roof size 11'9" x 13'9" (3.59m x 4.19m)
• External size to outside of the corner posts 10'10" x 12'6" (3.3m x 3.8m)
• Minimum base size 10'10" x 12'6" (3.3m x 3.8m)

12'x16' pergola

• Overall roof size 11'9" x 15'8" (3.59m x 4.78m)
• External size to outside of the corner posts 10'10" x 14'5" (3.3m x 4.39m)
• Minimum base size 10'10" x 14'5" (3.3m x 4.39m)

12'x18' pergola

• Overall roof size 11'9" x 17'8" (3.59m x 5.38m)
• External size to outside of the corner posts 10'10" x 16'4" (3.3m x 4.99m)
• Minimum base size 10'10" x 16'4" (3.3m x 4.99m)

12'x20' pergola

• Overall roof size 11'9" x 19'7" (3.59m x 5.98m)
• External size to outside of the corner posts 10'10" x 18'4" (3.3m x 5.59m)
• Minimum base size 10'10" x 18'4" (3.3m x 5.59m)

14'x10' pergola

• Overall roof size 13'9" x 9'10" (4.19m x 2.99m)
• External size to outside of the corner posts 12'9" x 8'6" (3.9m x 2.6m)
• Minimum base size 12'9" x 8'6" (3.9m x 2.6m)

14'x12' pergola

• Overall roof size 13'9" x 11'9" (4.19m x 3.59m)
• External size to outside of the corner posts 12'9" x 10'6" (3.9m x 3.2m)
• Minimum base size 12'9" x 10'6" (3.9m x 3.2m)

14'x14' pergola

• Overall roof size 13'9" x 13'9" (4.19m x 4.19m)
• External size to outside of the corner posts 12'9" x 12'6" (3.9m x 3.8m)
• Minimum base size 12'9" x 12'6" (3.9m x 3.8m)

14'x16' pergola

• Overall roof size 13'9" x 15'8" (4.19m x 4.78m)
• External size to outside of the corner posts 12'9" x 14'5" (3.9m x 4.39m)
• Minimum base size 12'9" x 14'5" (3.9m x 4.39m)

14'x18' pergola

• Overall roof size 13'9" x 17'8" (4.19m x 5.38m)
• External size to outside of the corner posts 12'9" x 16'4" (3.9m x 4.99m)
• Minimum base size 12'9" x 16'4" (3.9m x 4.99m)

14'x20' pergola

• Overall roof size 13'9" x 19'7" (4.19m x 5.98m)
• External size to outside of the corner posts 12'9" x 18'4" (3.9m x 5.59m)
• Minimum base size 12'9" x 18'4" (3.9m x 5.59m)

PRESSURE TREATED TIMBER: Pressure treatment is a lifetime preservative treatment. The preservative is forced deep into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently bonded to the cell structure of the wood at a molecular level. Tanalith E is a widely used water based version so pressure treated wood is often described as tanalised. Pressure treated wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with a suitable wood preservative in any colour.

RESTRICTED ACCESS: This gazebo is easy to deliver if access is restricted - all sections are designed to pass through a normal single door.

• A selection of microporous wood preservatives in a wide choice of colours

MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.

Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.

Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.

Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.

Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.

WATERPROOF COLOUR SEAL - DELIVERED TO YOUR DOOR: This advanced water-based microprous timber treatment uses the latest high-tech nanotechnology to create a long-lasting waterproof wood coating that is environmentally friendly. It is suitable for use on all softwood and hardwood products and is especially recommended for use on pressure treated timber, including sheds, summerhouses, gazebos, fencing and garden furniture. This timber treatment will colour, protect and enhance your exterior wood. It contains a mould inhibitor to protect the coating and can be used on all outside and inside timber. It gives a traditional matt wood stain finish in a range of natural colours. It can easily be applied by sprayer, brush or roller. It is recommended that the second coat is applied as soon as the first coat is touch dry. We advise for ultimate performance the timber has a wood preservative pre-treatment. For the first treatment, two coats are recommended and will give a traditional wood stain finish that is long lasting. A further coat is recommended every 2-5 years. One litre covers approximately 10-12 square metres. Coverage varies according to the smoothness of the surface and the porosity of the timber. On average five litres covers a 12x8 shed with two coats and ten litres covers a 10x20 with three coats. It is recommended that 2 coats be applied. We recommend that you order more than you need to be sure that you have easily enough. The appearance of colours and shades may vary between different screens or devices. Prices include free mainland delivery to England, Wales and southern Scotland.

WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
