Wooden Log Garage 435 - Apex, Personnel Door
1
2
3
Play Video

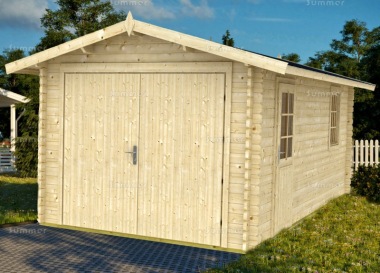

Pictures 1 and 2 show the garage with optional felt tiles. Picture 3 shows the garage with the doors open.

Summary:

This premium quality wooden garage is approximately 10'x19' and 10'x20' (3.2x5.7m and 3.2x6.2m) with a choice of 40mm or 70mm thick wall logs. Roof options include insulation, untearable roofing felt, felt tiles, genuine cedar shingles and granular steel roof tiles. The price includes double hinged main doors, a personnel door and an opening window with a choice of Georgian or contemporary plain glazing. Additional windows are available as an option. The roof is attractive and durable 18mm thick tongued and grooved boards. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • All timber used in the construction of these log garages originates from sustainable forests
  • Interlocking double tongued and grooved wall logs
  • All logs double grooved for superior draughtproofing
  • Strong 18mm thick tongued and grooved roof boards
  • Log cabins with 40mm thick wall logs include pressure treated 28mm x 55mm foundation beams (lifetime preservative treatment)
  • Log cabins with 70mm thick wall logs include pressure treated 45mm x 70mm foundation beams (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Superior quality laminated timber doors and windows - less likely to twist or warp, more attractive than finger jointed timber
  • Double hinged main doors 2.37m wide x 1.96m high (7'9" x 6'5")
  • Double door clear opening height approximately 1870mm (6'2") including threshold
  • Double door clear opening width approximately 2200mm (7'3")
  • Single hinged personnel door 0.84m wide x 1.9m high (2'9" x 6'3")
  • Mortice lock with handles and keys
  • 1 side hinged tilt and turn opening side window 0.77m wide x 0.99m high (2'6" x 3'3")
  • Optional Georgian glazing beads, which can be removed or left out if you prefer contemporary plain glazing
  • Door and window glazed with glass (no plastic, acrylic, styrene or perspex)
  • Stainless steel door threshold
  • Chamferred top wall logs
  • Internal structural archway
  • Pre assembled gables
  • Log cabins with 40mm thick wall logs include timber storm battens
  • Log cabins with 70mm thick wall logs include metal storm battens
  • Front roof overhang 0.25m (10")
  • Ridge height 2.57m (8'5")
  • Eaves height 2.17m (7'1")

3.2m x 5.7m log garage

  • External garage size 3.2m wide x 5.7m long (10'6" x 18'8")
  • Internal room size (40mm logs) 2.92m wide x 5.42m long (9'7" x 17'9")
  • Internal room size (70mm logs) 2.86m wide x 5.36m long (9'5" x 17'7")
  • Minimum base size 3.0m wide x 5.5m long (9'10" x 18'1")

3.2m x 6.2m log garage

  • External garage size 3.2m wide x 6.2m long (10'6" x 20'4")
  • Internal room size (70mm logs) 2.86m wide x 5.86m long (9'5" x 19'3")
  • Minimum base size 3.0m wide x 6.0m long (9'10" x 19'8")

LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.

SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.

NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.

FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.

WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint. Thicker logs also provide improved insulation.

CHAMFERRED TOP WALL LOGS: This high specification building features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.

STORM BARS: Storm bars are an important quality feature. One obvious benefit is that storm bars help to protect your log cabin from wind damage. In addition, by clamping the logs together storm bars make the joints more weatherproof and reduce any bowing or twisting of the logs. The storm bars are easily fitted at each corner to hold the individual logs together tight. This counters the impact of strong winds. This feature is especially useful if the cabin has a large roof overhang which is exposed to the wind. Many log cabins do not include any storm bars. These timber storm bars feature elongated fixing holes to allow for timber movement. The bolts are easily accessible after installation so they can be tightened or loosened as required to allow for any timber movement.

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

LAMINATED DOORS AND WINDOWS: Laminated wood is an engineered structural timber. Precisely machined small sections of wood are glued together under high pressure with strong waterproof adhesive. After extensive machining the finished piece of timber is barely distinguishable from real wood - it is real wood, but it is stronger and less likely to warp or twist. Doors and windows made with laminated timber are less prone to distortion. This is because one piece of wood can move erratically while many pieces of wood counteract each other. It is rare to find laminated doors and windows specified in a log cabin due to the high production cost. This is an important quality feature because in a log cabin the doors and windows are a vital component which is particularly exposed to the elements. Laminated timber is also kind to the environment because it uses offcuts and creates less waste.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. All sizes are approximate.
