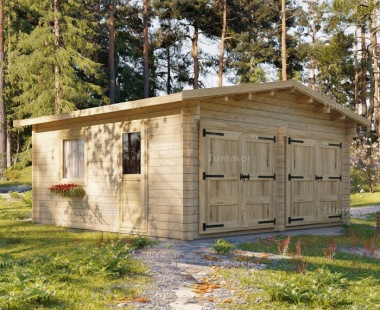

Wooden Log Garage 416 - Apex, Personnel Door
This high quality wooden double garage is approximately 20'x16' or 20'x20' (6.0x5.0m or 6.0x6.0m) with a choice of 45mm logs or 140mm twinskin. The price includes two sets of double hinged main doors, a personnel door and an opening window with large pane glazing. Premium double glazing is included as standard. Roof options include insulation, untearable roofing felt, felt tiles, genuine cedar shingles and granular steel roof tiles. Additional windows are available as an option. Detailed instructions are supplied for easy DIY self assembly. We offer fitting as a low cost option in many areas.
- All timber used in the construction of these log cabins originates from sustainable forests
- Interlocking tongued and grooved wall logs with a choice of single log or twinskin construction
- All logs double grooved for superior draughtproofing
- Strong 19mm thick tongued and grooved roof boards
- Substantial 7"x3" roof purlins (approximate finished size 60x170mm)
- Pressure treated 3"x2" foundation beams (approximate finished size 75x50mm)
- Morticed and tenoned joinery doors and windows
- Modern large pane plain glazing
- Mortice lock with handles and keys
- Chrome finish personnel door and window handles
- 1 opening side window approximately 1.05m wide x 1.03m high (3'5" x 3'4")
- 2 sets of fully boarded double hinged main doors
- Main doors 2.5m wide x 1.94m high (8'2" x 6'4")
- Half boarded single hinged personnel door
- Single hinged door approximately 0.85m wide (2'9")
- Door clear opening height approximately 1.84m high (6'0")
- Door head clearance approximately 1.94m high (6'4")
- Double glazed doors and windows (no plastic, acrylic, styrene or perspex)
- Premium double glazed windows with 28mm thick double glazing units, 20mm air gaps, weatherstripped sash openings and profiled aluminium cills for durability
- Premium double glazed doors with 18mm thick double glazing units with 10mm air gaps
- Chamferred top wall logs
- Pre assembled gables
- Front roof canopy projection approximately 0.5m (1'8")
- Eaves height approximately 2.16m (7'1")
- Ridge height approximately 3.0m (9'10")
6.0x5.0m log garage
- External size 6.0m wide x 5.0m long (19'8" x 16'5")
- Internal size (45mm logs) 5.71m wide x 4.71m long (18'9" x 15'5")
- Internal size (twinskin) 5.52m wide x 4.52m long (18'1" x 14'10")
- Minimum base size 5.8m wide x 4.8m long (19'0" x 15'9")
6.0x6.0m log garage
- External size 6.0m wide x 6.0m long (19'8" x 19'8")
- Internal size (45mm logs) 5.71m wide x 5.71m long (18'9" x 18'9")
- Internal size (twinskin) 5.52m wide x 5.52m long (18'1" x 18'1")
- Minimum base size 5.8m wide x 5.8m long (19'0" x 19'0")
LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation. Insulation is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less factory time.
NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.
FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.
WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint.
CHAMFERRED TOP WALL LOGS: This high specification apex roof log cabin features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.
JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.
HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.
DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.
ALUMINIUM WINDOW CILLS: Our high performance premium windows feature profiled aluminium external cills for durability. The modern profile design also allows rainwater to drain away from within the window which prolongs the life of the window and the double glazed units.
SIZES - LENGTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang.
- Crane offload is included as standard in mainland England, Wales and southern Scotland.
- In northern Scotland, Northern Ireland, the Republic of Ireland and offshore islands crane offload is not available. Delivery in these areas requires you to provide two fit and strong people to unload by hand.
- A choice of 45mm thick wall logs or 140mm thick twinskin walls (45mm external wall log + 50mm cavity + 45mm internal wall log)
- The personnel door and side window can be positioned in the left side wall or right side wall and does not need to be specified when ordering
- A choice of roof coverings, insulation and base kits at exceptionally low prices and all supplied with fixings and detailed instructions
- Untearable roofing felt
- Decorative mineral felt tiles
- Cedar shingle roof with genuine individual cedar tiles traditionally made using only the finest Western Red Cedar
- Granular steel roof tiles with a maintenance free mineral surface which looks and lasts like clay tiles
- Roof insulation
- Additional doors
- Additional windows
- A selection of microporous wood preservatives in a wide choice of colours
- Natural wood oil preservative in a choice of colours
TWINSKIN CAVITY WALLS: Twinskin log cabins with cavity walls are normally specified only when the highest level of insulation is required for a building which is in regular and prolonged use all year round. The twinskin construction features an additional internal wall with a cavity between the inner and outer skin. Cavity wall insulation is recommended to ensure the best performance. To ensure a neat internal appearance, all doors and windows in our twinskin cabins include neat timber reveal linings and cavity closers. The inner and outer skin are built at the same time. The wall insulation is inserted in the cavity as the walls are built. Roof and floor insulation are also recommended. Our 140mm thick twinskin log cabins feature an external wall with 45mm thick logs, a 50mm cavity and an internal wall with 45mm logs (45+50+45=140mm). With insulation fitted throughout, our twinskin log cabins are better insulated than any other garden rooms or garden offices available at almost any price. Twinskin with logs is very quick and easy to install compared with the only alternative which requires a multitude of fiddly clips and lining boards which must be painstakingly cut to size on site. Twinskin with logs is also much stronger, with immensely strong corner joints and the internal walls are much harder to damage than flimsy lining boards.
GRANULAR STEEL ROOF TILES: These lightweight granular steel roof tiles are guaranteed for 40 years. The tiles have been tried and tested in every climate throughout the world from hurricanes and hailstones to heatwaves. Uses include homes, flats, schools, offices and all types of buildings. The tiles are pressed from galvanized steel with two further protective layers of weather resistant acrylic and a coverage of natural stone chips. The natural stone chips are bonded to the tiles to give a weatherproof surface with an attractive textured appearance similar to clay tiles. Colours are as accurate as reproductive techniques allow.
CEDAR ROOF SHINGLES: Attractive and durable, cedar shingles make the ideal roof for high specification sectional garages. These genuine cedar roof shingles are traditionally made from Western Red Cedar. The individual cedar shingles are laid over a felted solid pine inner roof. Each individual cedar tile is a known as a shingle. Cedar shingles have long been a popular roofing material for domestic and public buildings in large parts of North America where cedar shingles have a reputation for warmth and longevity. Cedar has an unrivalled reputation for durability and cedar shingles often last for many decades. We use only the highest grade of shingles which are 100% heartwood, 100% free from defects and 100% edge grain. Heartwood edge grain is the densest possible cut which ensures maximum durability. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture.
DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. This ensures that every tile is stuck to the tile below within a few days for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.
UNTEARABLE ROOF FELT: This untearable mineral coated bitumen roofing felt is more durable than standard roofing felt. Standard felt is paper backed or fibreglass backed, both of which are very easy to tear or puncture. This weakness makes standard felt vulnerable to wind damage. Although our untearable roofing felt looks and feels the same it includes a concealed plastic membrane which makes it far stronger. The most common cause of damage to a standard felt roof is a gust of wind getting under the felt and tearing it. Once the felt is torn it is quickly ruined. Standard felt can be torn very easily but our untearable felt cannot be torn by hand without a cutting edge. Even aggressive attempts to tear the felt by hand will only wrinkle the edges as the hidden membrane is stretched.
ROOF INSULATION: Our roof insulation is 50mm thick polyurethane foam with reflective silver alloy laminate facings on both sides. It is certified by the British Board of Agrement. The roof insulation is laid over the roof boards and below the roof covering. This ensures that the internal appearance is unchanged with attractive tongued and grooved boards. No internal lining boards are required. The kit features rigid foam boards which are lightweight and easy to install. Timber battens are also included to retain the insulation boards and to conceal the exposed edges. If your order includes roofing felt or felt tiles longer nails are included for fixing through the insulation. If your order includes cedar shingles or granular steel tiles additional decking boards are supplied which are laid over the insulation to provide a suitable surface for fixing the tiles. Detailed instructions are supplied.
MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.
Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.
Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is requred. It is available with a choice of 12 colours.
Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.
WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
NATURAL WOOD OIL - DELIVERED TO YOUR DOOR: Our traditional wood oil preservative is linseed oil based and provides a natural ecologically friendly alternative to modern alkyd based preservatives. Wood oil combines the waterproofing qualities of a paint finish with the high absorption rate of woodstain. The natural oiliness provides a highly water repellent surface which protects the wood from moisture. The oil also penetrates deep into the wood and emphasizes the grain. The high elasticity of wood oil allows it to expand and contract with the wood as climatic conditions vary. Three coats are recommended with a further coat after 1-3 years. One litre covers approximately 12 to 16 square metres. Coverage varies according to the smoothness and porosity of the timber so you should order more than you need. On average five litres covers a 10x8 log cabin with three coats and ten litres covers a 20x13 log cabin with 3 coats. Colours are only as accurate as reproductive techniques allow. Prices include free mainland delivery to England, Wales and southern Scotland.
BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.
- Delivery is normally between 6 and 10 weeks after order.
- Our sectional garage prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.
- Delivery is by appointment with advance notice by phone a day or two before.
- It is normally possible to deliver this sectional garage even if access is restricted. The wall logs can be carried one or two at a time and all packages are designed to pass through a normal single door.
Delivery to all mainland addresses in England, Wales and southern Scotland
Our CRANE OFFLOAD service requires no manual unloading. The driver can unload quickly and easily without assistance. The pack is normally delivered onto the drive. It is sometimes possible to deliver onto the front lawn. It is not normally possible to deliver the pack into the back garden. The pack is strapped and sealed on delivery but after the pack is opened the individual components are easy to carry.
- The crane offload option is available at all mainland addresses in England and Wales.
- The crane offload option is available in southern Scotland in DG, EH, FK1-7, FK9-15, G1-62, G64-82, KA1-26, KA29-30, KY, ML, PA1-19, PH2-5 and TD postcodes.
- The crane offload option is currently not available in Northern Scotland, Northern Ireland, the Republic of Ireland, the Scottish Islands, the Isle of Wight, the Isle of Man or the Channel Islands.
- You will always receive advance notice of the delivery.
- Your delivery is arranged as part of a mixed load with 6 or 8 other customers in the same area.
- You can select a 1 week delivery window.
- You can delay the delivery if required, for example if your base is not ready.
- If requested the driver can phone you 30-60 minutes before arriving.
Delivery to northern Scotland, Northern Ireland, the Republic of Ireland and all offshore islands
Our HAND UNLOAD service requires you to provide two fit and strong people to unload by hand. Your log cabin is delivered as a large pack. A typical pack includes around 200-300 individual pieces of wood and other elements which may be heavy. Unloading by hand is not difficult if you are fit and strong and used to physical work. Unloading by hand is not recommended if you are older, unfit, ill or not used to physical work.
- The hand unload service is available in Northern Scotland, Northern Ireland, the Republic of Ireland, the Scottish Islands, the Isle of Wight, the Isle of Man or the Channel Islands.
- You will always receive advance notice of the delivery.
- You can delay the delivery if required, for example if your base is not ready.
- If requested the driver can phone you 30-60 minutes before arriving.
- All sectional garage prices include VAT.
- Pay only 30% deposit when you order this sectional garage by phone or online.
ORDER BY PHONE: You can pay with a debit or credit card. To order phone us on 01603 721590 seven days a week. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Delta, VISA Debit, MasterCard Debit, Electron, Solo, Switch, Maestro and UK Maestro. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque you will need to order by phone.
- Low cost installation is available in most areas
- Low fixed rates
- Payment on completion
THOUSANDS OF SATISFIED CUSTOMERS: Since we were established in 1981 we have fitted buildings for thousands of customers at unbeatable prices. Our specialist fitters have agreed to fit buildings in your area at low fixed rates in return for regular work. Payment is due on completion. To order online just add your chosen fitting option to your shopping basket before you proceed to the checkout. To order by phone just phone us 7 days a week on 01603 721590.
LOW PRICES FOR BASELAYING AND INSTALLATION: Our unique low cost installation service is available in most areas. To see the prices in your local area just enter the first half of your postcode at the top of every page or CLICK HERE. If available our installation service is offered alongside the building prices. To see the prices just click on the blue "i" symbol next to each fitter.
NO FITTERS IN YOUR AREA? If you cannot see any fitters in your area please phone us for a quotation. If you experience any other problems, for example entering your postcode or finding the fitting prices just contact us. You can phone us on 01603 721590. Lines are open 7 days a week and our expert advisers are always happy to help.
