Internal lining with insulation

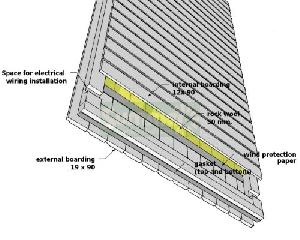

Lined and insulated walls detail diagram
This garden office is available with prefabricated fully lined and insulated wall panels. High performance 50mm thick mineral wool insulation is fitted between the framing. A vapour barrier and rubber gasket top and bottom are also included. The internal walls are fully lined with 12mm tongued and grooved boards. The bottom two internal boards are supplied loose to allow electrical cables to be easily installed if required. Overall wall thickness approximately 75mm.
