Floor plan and sizes
3.5m deep cabins (11'6")

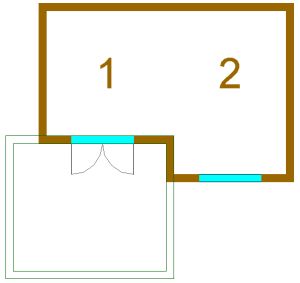

This single room cabin is an irregular shape with an integral porch. The plan shows the porch to the left, one double door, one window and the optional 9'10" x 9'10" (3m x 3m) verandah.
Cabin size 11'6" x 13'1" (3.5m x 4.0m)
Area 1 = 2000mm wide x 2500mm deep
Area 2 = 2000mm wide x 3500mm deep
Cabin size 11'6" x 14'9" (3.5m x 4.5m)
Area 1 = 2000mm wide x 2500mm deep
Area 2 = 2500mm wide x 3500mm deep
Cabin size 11'6" x 16'5" (3.5m x 5.0m)
Area 1 = 2500mm wide x 2500mm deep
Area 2 = 2500mm wide x 3500mm deep
Cabin size 11'6" x 18'1" (3.5m x 5.5m)
Area 1 = 2500mm wide x 2500mm deep
Area 2 = 3000mm wide x 3500mm deep
Cabin size 11'6" x 19'8" (3.5m x 6.0m)
Area 1 = 2500mm wide x 2500mm deep
Area 2 = 3500mm wide x 3500mm deep
