Security Pent Shed 568 - Shiplap, T and G Floor and Roof
Play Video

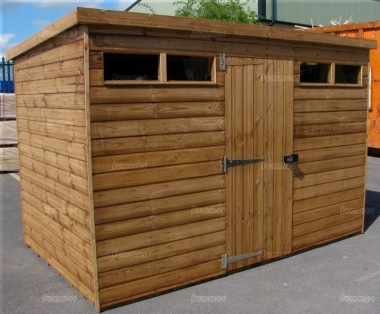

Pictures 1, 2, 3, 4 and 5 show the standard 6'x12' shed with deal cladding. Picture 6 shows the standard 6'x8' shed with deal cladding.


These premium quality pent roof sheds are available in 29 sizes. The depths are 4', 5', 6', 8', 10', 12' (1.2m - 3.6m) The widths are 4', 6', 7', 8', 10', 12', 14', 16', 18' or 20' (1.2m - 6.0m). Features include strong ex 2" thick planed framing and are packed with extra security features including security windows glazed with toughened glass and additional framing for extra strength. Options include a choice of deal or cedar cladding. The joinery door frames include vertical, horizontal and diagonal framing with morticed and tenoned joints. Heavy duty bolted hinges and a pad bolt protector provide additional security. The 6' eaves height ensures plenty of headroom. Instructions are supplied for self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • All timber used in the construction of this shed originates from sustainable forests
  • All timber treated by total immersion in a high quality preservative
  • Pressure treated 2" x 2" floor joists (lifetime preservative treatment). Bearers not required
  • Strong ex 2" planed framework (45mm x 33mm finished size after machining)
  • 12mm deal tongued and grooved floor boards (finished size after machining)
  • 12mm deal tongued and grooved roof boards (finished size after machining)
  • Strong ex 3" thick planed roof purlins (70mm finished size after machining)
  • Windows include a profiled window cill
  • Security windows glazed with toughened safety glass
  • Fully framed, ledged and braced joinery door frames with morticed and tenoned joints
  • Heavy duty bolted hinges
  • Padbolt protector bolted internally for added security (padlock not supplied)
  • 5'8" high x 2'6" wide single door (1740mm x 770mm)
  • Green mineral felt roof
  • Height at the rear 6'4" (1940mm)
  • Height at the front approximately 6'9" or 2050mm (4', 5' and 6' deep sheds)
  • Height at the front approximately 7'0" or 2135mm (8' deep sheds)

QUALITY CONSTRUCTION: A feature of these quality sheds is the heavy duty doors. The joinery door frames are fully morticed and tenoned with substantial framing and a good quality lock. The windows are glazed with glass and glazing beads. Many sheds include thin styrene glazing, which provides little security or weather protection. Another feature is the substantial 2" thick wall framing spaced close together, which ensures a more robust and durable building.

NO BEARERS REQUIRED: The floor joists are pressure treated so separate bearers are not required, which represents a saving on the overall cost. The floor joists are the only part of the shed which is in contact with the ground.

PLANED SHIPLAP CLADDING: These garden sheds feature smooth planed fully interlocking tongued and grooved shiplap wall cladding. This design ensures that rainwater drains faster and the timber dries quicker, which ensures a longer life for your garden shed. Our shiplap is fully tongued and grooved which is stronger than the half lap shiplap or rebated shiplap used by some others.

TOUGHENED SAFETY GLASS: Toughened safety glass is around 6 times stronger than normal glass so it is less likely to break. When it does break, toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
